Brand Name : APIE
Model Number : KA 4500-KA65000
Certification : CE,ISO9001
Place of Origin : Jiangsu, China
MOQ : 1 set
Price : $5000+
Payment Terms : L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability : 100sets per month
Delivery Time : 30 working days after receiving the advance payment
Packaging Details : Method One: Nude packing and overall transport by sea with roll-on-roll-off ship.
Condition : New

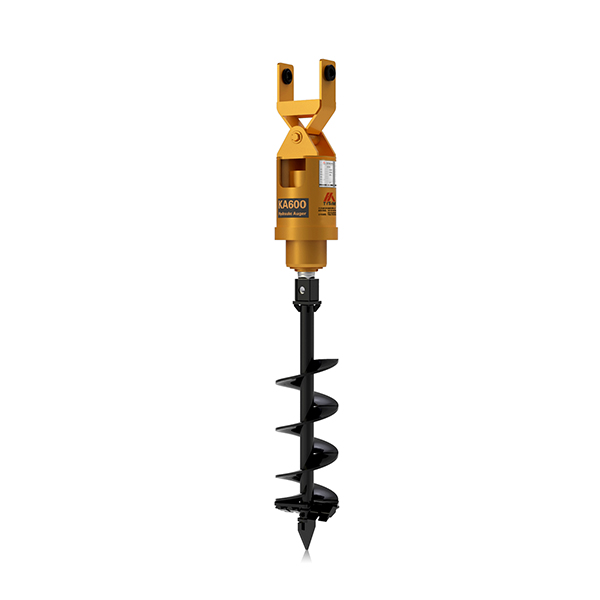

Name : Hydraulic earth auger
Machinery Test Report : provided
Video outgoing-inspection : provided
Applicable Industries : Construction works
Color : Black
Torque : 1710-4117
Pressure : 80-240
weight : 110
Rotate Speed : 35-68
Suitable Excavator(ton) : 1-45T
china factory popular type output shaft 1.5-3m ground drill machine gasoline earth auger
Feature

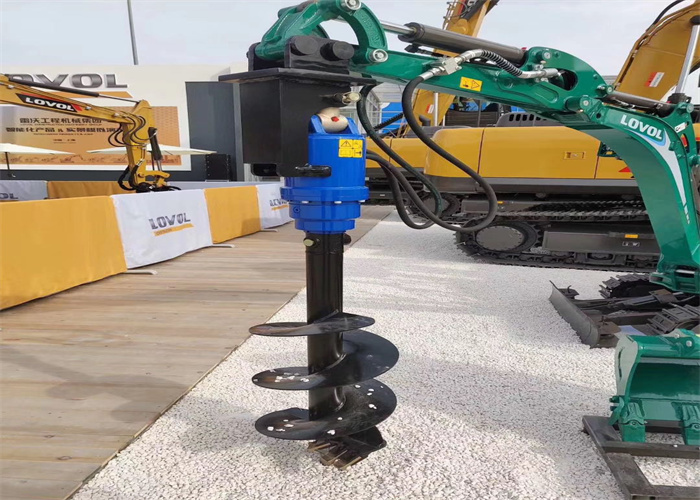

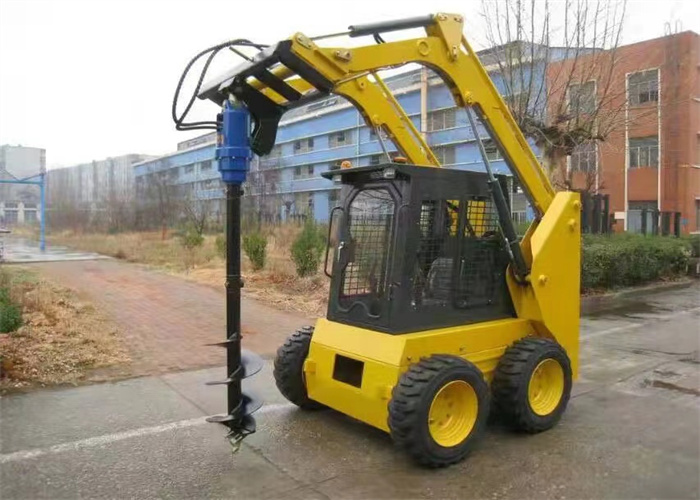

1.Earth auger is suitable for all types of excavators, skid steer loader, backhoe loader, crane, telescopic handler etc.It has widely apply to forestry,telecommunication municipal works, high-speed railway,construction and forest project.
2.Introduction of leading technology and equipment from AUGER TORQUE EUROPE in the UK, with the advantage of system-wide management and a global supply network.

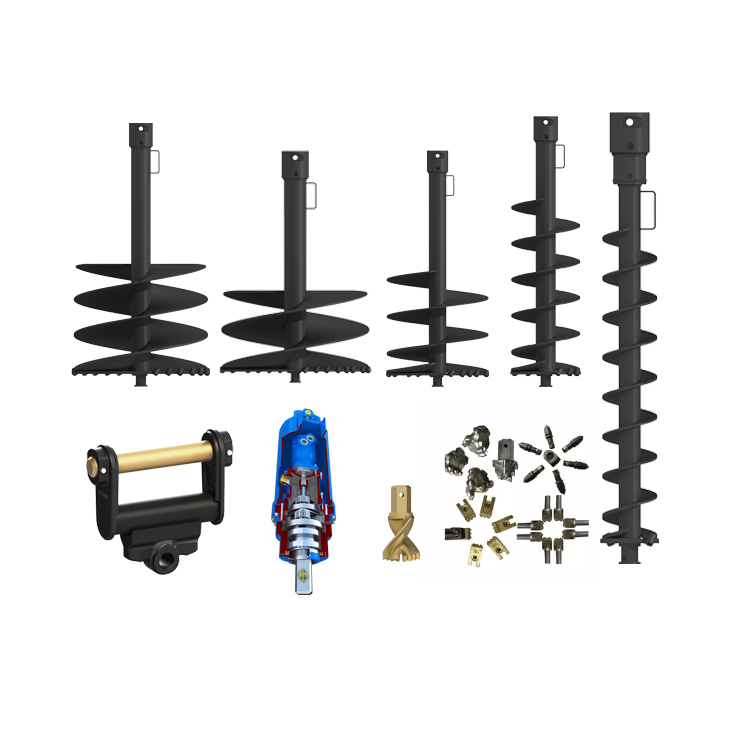

3.Using the Shock Lock™ pin and rubber insert in our unique Shock Lock™ tooth holders ensures your Auger teeth are safely locked in place and protected against shock fractures.
4.Replacing worn teeth is a breeze with this system, simply knock out the old pin with a standard hole punch and the tooth will slide out of the pocket with ease.
5.Acclaimed as the best system on the market you will never need to worry about fitting spare teeth due to loss again.
Technical Specification of Auger Drill | |||||||
Type | Unit | KA2500 | KA3000 | KA3500 | KA4000 | KA6000 | KA8000 |
Suitable Excavator | T | 1.5-3T | 2-4T | 2.5-4.5T | 3-5T | 4.5-6T | 5-7T |
Torque | Nm | 790-2593 | 1094-3195 | 1374-3578 | 1710-4117 | 2570-6917 | 3163-8786 |
Pressure | Bar | 70-240 | 80-240 | 80-240 | 80-240 | 80-240 | 80-240 |
Flow | Lpm | 25-65 | 25-70 | 40-80 | 50-92 | 40-89 | 48-110 |
Rotate Speed | Rpm | 36-88 | 30-82 | 35-75 | 35-68 | 20-46 | 20-45 |
Output Shaft | mm | 65Rnd | 65Rnd | 65Rnd | 65Rnd | 75Sq | 75Sq |
Weight | Kg | 95 | 100 | 105 | 110 | 105 | 110 |
Max Auger Diameter Clay/Shale | mm | 300 | 300 | 350 | 350 | 500 | 600 |
Max Auger Diameter Earth | mm | 350 | 400 | 450 | 500 | 600 | 800 |
Technical Specification of Auger Drill | |||||||
Type | Unit | KA9000 | KA15000 | KA20000 | KA25000 | KA30000 | KA59000 |
Suitable Excavator | T | 6-8T | 10-15T | 12-17T | 15-22T | 17-25T | 20-35T |
Torque | Nm | 3854-9961 | 5307-15967 | 6715-20998 | 8314-25768 | 15669-30393 | 27198-59403 |
Pressure | Bar | 80-240 | 80-260 | 80-260 | 80-260 | 80-260 | 160-350 |
Flow | Lpm | 70-150 | 80-170 | 80-170 | 80-170 | 80-170 | 100-250 |
Rotate Speed | Rpm | 23-48 | 23-48 | 15-32 | 12-26 | 12-21 | 10-22 |
Output Shaft | mm | 75Sq | 75Sq | 75Sq | 75Sq | 75Sq | 110Sq |
Weight | Kg | 115 | 192 | 200 | 288 | 298 | 721 |
Max Auger Diameter Clay/Shale | mm | 800 | 900 | 1000 | 1100 | 1200 | 1500 |
Max Auger Diameter Earth | mm | 1000 | 1200 | 1400 | 1500 | 1600 | 2000 |
Product details
FAQ
Q1: How to choose a suitable model?
Pls kindly let us know your following information, and then we recommend right model for you.
1 Brand and model of Excavator/Backhoe/Skid Steer loader 2.Hole diameter 3.Hole depth 4.Soil condition
Q2: Can earth drill fit a variety of machines?
Yes.as long as the carrier's specifications agree with the parameters of the Earth Drill as outlined in our catalogue
Q3: Do I need to purchase spare parts when ordering an earth drill?
It is not necessary to purchase spare parts for the Planetary Drive as this is a sealed unit, however it is important to follow the service schedule as outlined in the operator manual. It is advisable to purchase spare wearing parts (teeth and Pilots).
Q4: How about the delivery time?
Within 5-10 working days after receiving T/T payment.
![]() |
Popular Type Gasoline Earth Auger Output Shaft 1.5m Ground Drill Machine Images |
