KR125ES Advanced Technology Engine Displacement 3.8L Bore Pile Machine Rotary Drilling Rigops
Feature
1.USA powerful Cummins engine
2.GB certification and EN 16228 standard certification
3.New and upgraded TYSIM Caterpillar chassis
4.The multi-stage vibration reduction design of the power head results in better vibration reduction
5.Strong rotary braking performance
6.New generation electronic control platform
Technical Specification
| Performance Parameter | Unit | Value |
| Max. torque | kN.m | 125 |
| Max. drilling diameter | mm | 1800 |
| Max. drilling depth | m | 20 |
| Working speed | rpm | 8~30 |
| Max. cylinder pressure | kN | 100 |
| Max. hoist capacity | kN | 110 |
| Main winch pull force | kN | 110 |
| Main winch speed | m/min | 80 |
| Auxiliary winch pull force | kN | 60 |
| Auxiliary winch speed | m/min | 60 |
| Max. cylinder stroke | mm | 2000 |
| Mast side raking | ° | ±3 |
| Mast raking forward | ° | 3 |
| System pressure | mpa | 34.3 |
| Pilot pressure | mpa | 3.9 |
| Max. walking speed | km/h | 3 |
| Max. pull force | kN | 220 |
| Operating height | mm | 8000 |
| Operating width | mm | 3000 |
| Transport height | mm | 3425 |
| Transport width | mm | 3000 |
| Transport length | mm | 9761 |
| Total weight | t | 32 |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
3: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
4: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.
Product Tags:
|
|

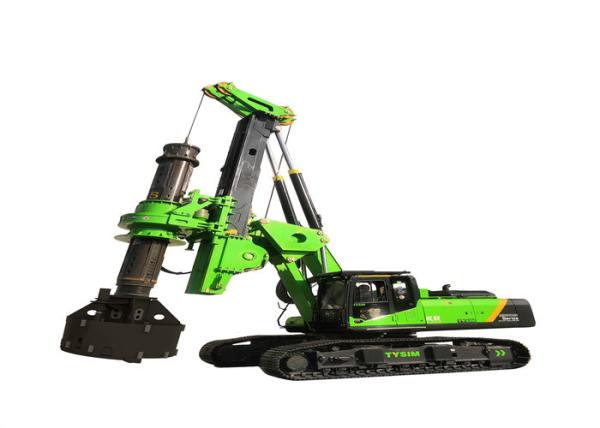

125KN/M Low Headroom Piling Rig Images
|
